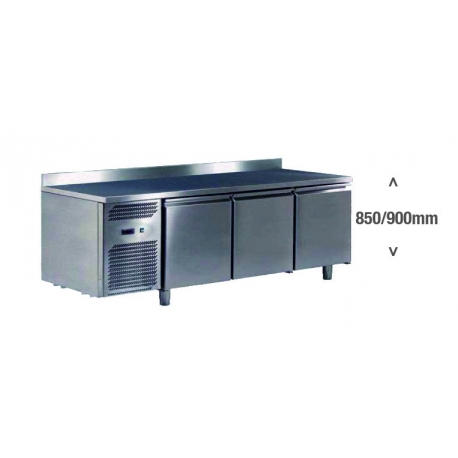

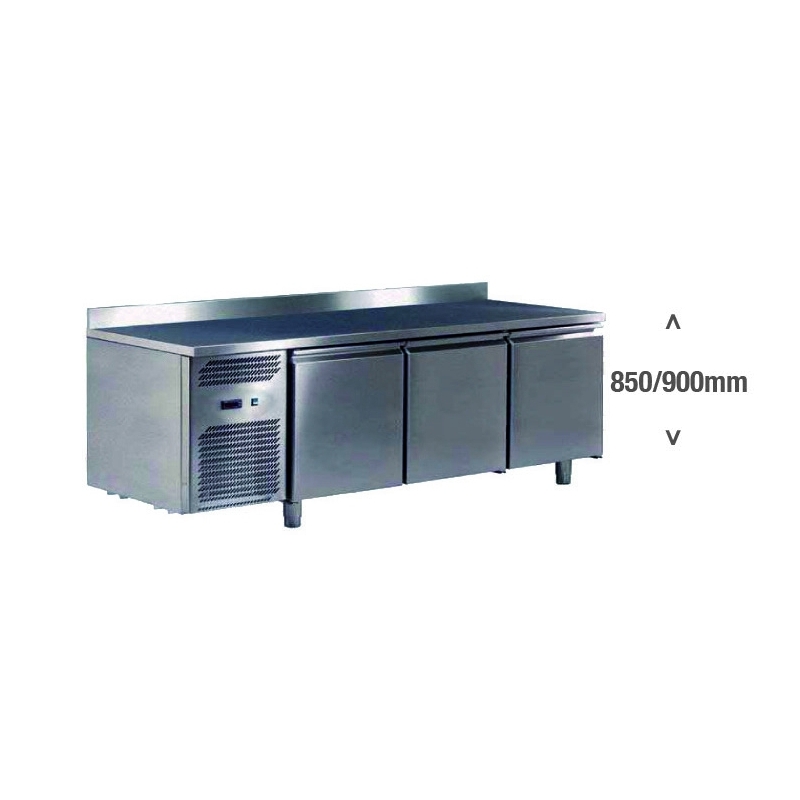

Ventilated negative refrigerated worktable - depth 700 - gn 1/1 - 325 x 530 mm
SS AISI 304
Interior and exterior monocoquein SSAISI304
Insulation 50mmin injected high-density polyurethane,CFCandHCFC free
Full door with2or3drawerswith horizontal SS handles
Worktop in SSAISI304 with polyurethane insulation, with or without splashback (by request)
Condensing unit or without condensing unit + regulator
Refrigeration: ventilated with evaporator (lacquered to prevent corrosion) or static version
Working temperature:0°/+8°C(ventilated);+2°/+8°C(static);-18°/-20°C(ventilated)
Digital temperature regulator
Automatic defrosting by simple pause button for version 0°/+8°C;by electrical resistance for version-18°/-20°C ;
Automatic evaporation of defrosted water by hot gas for version with condenser; direct evacuation for version without condenser
Interior equipment: 1 grid 600x400mmwith SS “U”runners
SS adjustable feet (or on castor by request)
Power230v/50Hz
Test at ambient temperature +40°C–40%H.r.Cl.5
Gasr452Aforversion-18°C/-20°C,gasr134aforversions0°C/+8°Cand-2°C/+8°C
For external condenser: PLEASE CONSULT US
Insulation: thickness 50 mm, polyurethane foam injected at high density
Electric control panel, automatic defrosting
Central evaporation with ventilators
Adjustable feet
Overall height 850 mm – Thickness top 40 mm
Gas R 404a versions -18°C/-20°C
Power supply: 230V 50Hz
Delivered with 5 sets of runners per door
Reviews
No customer reviews for the moment.
| Combinations | reference | Stock |
|
Dimensions : 1040 x 700 x 850, Top : Without, Group : Without Stock : TFG720 |
TFG720 |
Available now |
|
Dimensions : 1040 x 700 x 850, Top : Central, Group : Without Stock : TFG721 |
TFG721 |
Available now |
|
Dimensions : 1040 x 700 x 850, Top : Splashback, Group : Without Stock : TFG722 |
TFG722 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Without, Group : Without Stock : TFG730 |
TFG730 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Central, Group : Without Stock : TFG731 |
TFG731 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Splashback, Group : Without Stock : TFG732 |
TFG732 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Without, Group : Without Stock : TFG740 |
TFG740 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Central, Group : Without Stock : TFG741 |
TFG741 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Splashback, Group : Without Stock : TFG742 |
TFG742 |
Available now |
